Model 794 Central Controller and Model 795 Control Console
Order Code: M794 and M795

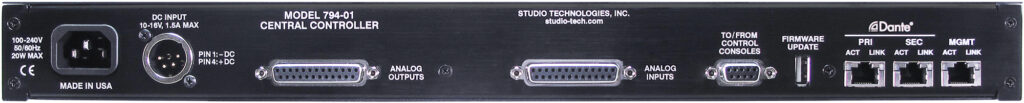

A StudioComm for Dante system designed for supporting 5.1 and stereo monitoring applications. Dante and analog inputs and outputs. Features include two 5.1 (6-channel) Dante digital audio inputs, two stereo (2-channel) Dante digital audio inputs, one 5.1 (6-channel) analog audio input, and two stereo (2-channel) analog line inputs. Also includes two 5.1 (6-channel) Dante digital audio outputs, two stereo (2-channel) Dante digital audio outputs, one 5.1 (6-channel) analog audio output, and one stereo (2-channel) analog audio output. Includes bass management, downmix, and cue-mix capability. Three configurable Gigabit Ethernet network interfaces; two can be used for transporting audio (Redundant Dante) and the third for accessing the management menu system. Includes shielded multi-conductor cable with a 9-pin male D-sub plug on each end for linking Model 794-01 with Model 795. Powered by 100-240 V, 50/60 Hz. Can also be powered by an external source of 12 Vdc. (Connect both for redundant powering.)
Which StudioComm product is right for your application?
Review the StudioComm Loudspeaker Monitor Control Systems Feature-by-Feature Comparison Chart.
